Mechanical Engineering Marvel: K'nex Enthusiast Builds Functioning 8-Bit Computer ALU

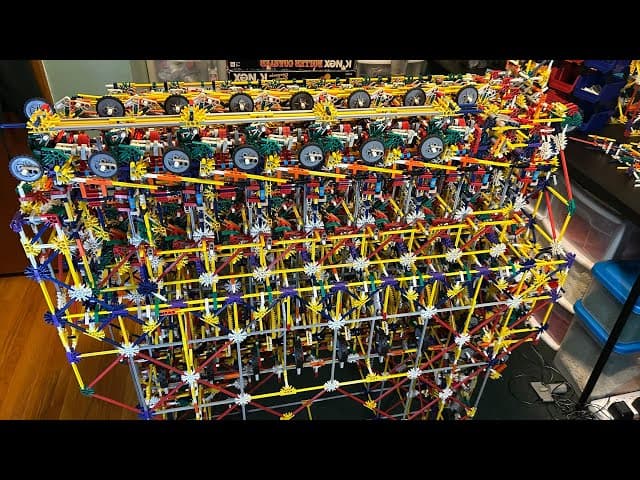

A K'nex enthusiast, known online as Shadowman39, has successfully constructed a fully mechanical 8-bit computer's Arithmetic Logic Unit (ALU) using only K'nex toy parts. This remarkable feat showcases the potential of mechanical engineering to replicate complex digital logic, inspiring the "Autism Capital 🧩" Twitter account to declare the builder a "legend" and award them the "Autist of the week award 🏆" in a recent post.

The intricate K'nex machine is capable of processing numbers from 0 to 255, or -128 to 127 in signed binary mode. It performs fundamental arithmetic operations such as addition and subtraction, alongside logical operations like AND, XOR, and bit inversion. The project's core, the ALU, simulates the operation of logic gates found in early computers through a complex network of levers, gears, and rods.

Shadowman39, identified as Kyle, a mechanical and software engineer, documented the initial stages of this ambitious project in a detailed video released in July 2025. He explained how the mechanical system stores values in registers using movable pins, with each bit represented by the pin's position. The calculation logic mirrors traditional arithmetic, managing sums and carries through mechanical movements.

The construction presents significant engineering challenges due to the inherent flexibility and imprecision of K'nex parts, which are not designed for high-precision applications. Despite these material limitations, Kyle has refined the design to ensure functional accuracy, demonstrating a deep understanding of mechanical principles. His inspiration for the project stemmed from watching Ben Eater's popular 8-bit breadboard computer series, prompting him to explore a purely mechanical rendition.

Future plans for the K'nex computer include the development of mechanical RAM and ROM for data and program storage, further expanding its capabilities. This project highlights the ingenious designs required to construct even rudimentary computers without electronics, offering a tangible demonstration of computational fundamentals. It stands as a testament to creative problem-solving and mechanical ingenuity.
